MakerFocus LoRa Module SX1262 Integrated WiFi Bluetooth LoRa IoT Development Board ESP32 LoRaWAN 863/928 MHz mit 0,49" OLED Display Antenne for Ar dui

当サイトをご覧頂き誠にありがとうございます。弊社商品は全て正規店からの新品・並行輸入品です。税関手続・関税払いは全て弊社で対応の上、全国送料無料でお届けします。弊社海外倉庫より国内に発送しますので、お届けまで2-15営業日程度お時間を頂いております。税関検査により無作為に開封された場合、ごく稀に外箱に損傷が生ずる場合がありますが、商品自体の品質には問題ございませんのでご安心ください。（商品が電波法上の技術基準に適合する必要がある無線機器の場合：商品は並行輸入品のため、電波法上の技術基準に適合致しません。日本国内で使用すると電波法に違反する恐れがありますので、ご購入・ご使用には十分ご注意ください）

• Support Ar duino Development Environment: Supports Ar duino version of ESP32 + LoRaWAN protocol routine. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol
• Easy to Use: With good RF circuit design and low-power design (sleep current 10μA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications
• Perfect Design: Integrated WiFi, LoRa, Bluetooth three network connections, onboard WiFi, Bluetooth dedicated 2.4 GHz l 3D antenna, reserved IPEX (U.FL) interface for LoRa use; integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
• Power Supply: Onboard SH1.25 battery interface, integrated lithium battery management system, you can also use the Type-C interface to power the development board, the interface with complete ESD protection, short circuit protection, RF shielding and other protection measures
• OLED Display: Onboard 0.49-inch 64*32 dot matrix OLED display, which can be used to display debugging information, battery power and other information

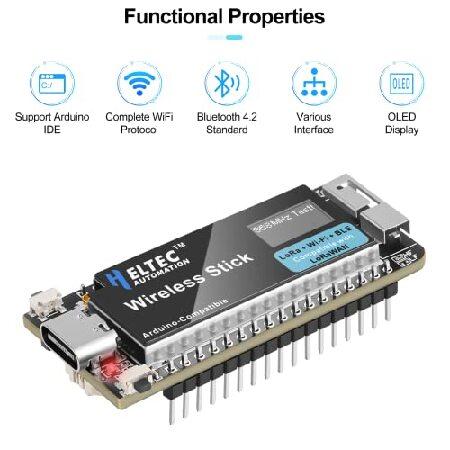

説明: In order to meet the user’s requirements for high performance and small size, we designed this Wireless Stick. On the basis of WiFi LoRa 32, it’s has a smaller size, 0.49″ OLED display and better RF characteristics

Parameter:
Microprocessor: ESP32
Main frequency: 240MHz
LoRa Node Chip: SX1262
Operating Frequencies: 863~928MHz
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Screen Size: 0.49 inch OLED screen
Power Supply: USB, lithium battery
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Sleep Current: <10μA
Specification:
Microprocessor: ESP32-S3FN8 (32-bit dual core processor, five stage pipeline rack structure, main frequency up to 240MHz);

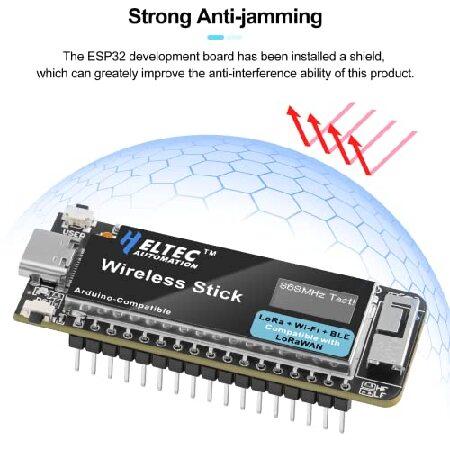

Type C interface with complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protection measures;
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB/ battery power automatic switching);
Integrated WiFi, LoRa, Bluetooth three network connections, onboard WiFi, Bluetooth dedicated 2.4GHz l 3D antenna, reserved IPEX (U.FL) interface for LoRa use;
Onboard 0.49-inch 64*32 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Supports the Arduino version of the ESP32 + LoRaWAN protocol routine. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol;
With good RF circuit design and basic low-power design, it is convenient for IoT application vendors to quickly verify solutions and deploy applications.

Packing List:
1 * Wireless Stick V3
1 * Antenna
1 * Battery Power Cord

当サイトをご覧頂き誠にありがとうございます。弊社商品は全て正規店からの新品・並行輸入品です。税関手続・関税払いは全て弊社で対応の上、全国送料無料でお届けします。弊社海外倉庫より国内に発送しますので、お届けまで2-15営業日程度お時間を頂いております。税関検査により無作為に開封された場合、ごく稀に外箱に損傷が生ずる場合がありますが、商品自体の品質には問題ございませんのでご安心ください。（商品が電波法上の技術基準に適合する必要がある無線機器の場合：商品は並行輸入品のため、電波法上の技術基準に適合致しません。日本国内で使用すると電波法に違反する恐れがありますので、ご購入・ご使用には十分ご注意ください）

カテゴリー:
メーカー: MakerFocus
ブランド: MakerFocus
高さ: 2.0 センチ
幅: 6.5 センチ
奥行: 6.5 センチ
重量: 0.0 Kg
